90th Avenue and the Southwest Ring Road

First appearing on plans together nearly 60 years ago, and shown as connected in every major road plan since, 90th avenue SW and the Southwest Calgary Ring Road have a long and inseparable history. The connection of these two roads together, initially planned out of convenience, and later out of necessity, continues to play a significant role in the history of the ring road. Calls to keep 90th avenue from being connected to the ring road have been heard in recent years, and it is important to understand the history of this road, and why the connection of 90th avenue is seen as an indispensable part of the ring road plan.

The Origins of 90th Avenue SW

90th avenue is an arterial road in Calgary’s southwest, south of the Glenmore Reservoir, that has existed in some form or another since the early days of the City. Early settlers in the region traveled its path to access their land, and by the early 20th century, a dirt road had been created which served a small number of homesteads in the area. This arrangement, pictured above in 1953, went largely unchanged for many years. When the foreseeable encroachment of an expanding City of Calgary finally necessitated it, bigger plans for the road were initiated.

Forward Planning and a Growing City

In the early to mid 1950s the City had begun to more fully embrace a civic planning program; one that was more forward looking than had been undertaken in decades. The City was creating plans for areas that were then rural, but would one day be developed as part of a rapidly-growing City. The earliest modern plan for 90th avenue can be traced back to 1953 when the City created it’s earliest internal Ring Road plan. 90th avenue SW between Macleod Trail and 37th street SW was at that time an integral part of the Ring Road, and formed the southern portion of the City’s first complete Southwest Calgary Ring Road route.

(Source: Untitled Map. December 1953. City of Calgary Corporate Records, Archives. Board of Commissioners S. IV box 189 F. 39.)

This configuration did not last long, and soon the main Ring Road route continued south, beyond 90th avenue SW. By 1956 a masterplan for the development of parks around the Glenmore Reservoir was developed by the City (shown below), and included a modified 90th avenue SW proposal. These plans mark the first time that plans for the Southwest Calgary Ring Road and 90th avenue SW were shown to the public.

Then called ‘South Glenmore Drive’, 90th avenue was depicted much as we know it today, running from 14th street SW to 37th street SW, where it connected directly to the ring road. This basic layout was retained in Calgary’s first approved transportation plan, 1959’s Calgary Metropolitan Transportation Plan (shown below as 92nd avenue).

Continue reading “90th Avenue and the Southwest Ring Road”

A Brief History of the Southeast Calgary Ring Road

The opening of the southeast Calgary ring road in November marked not only the completion of over three years of construction, but also of the fulfillment of a goal first set out by the Province of Alberta nearly 60 years earlier.

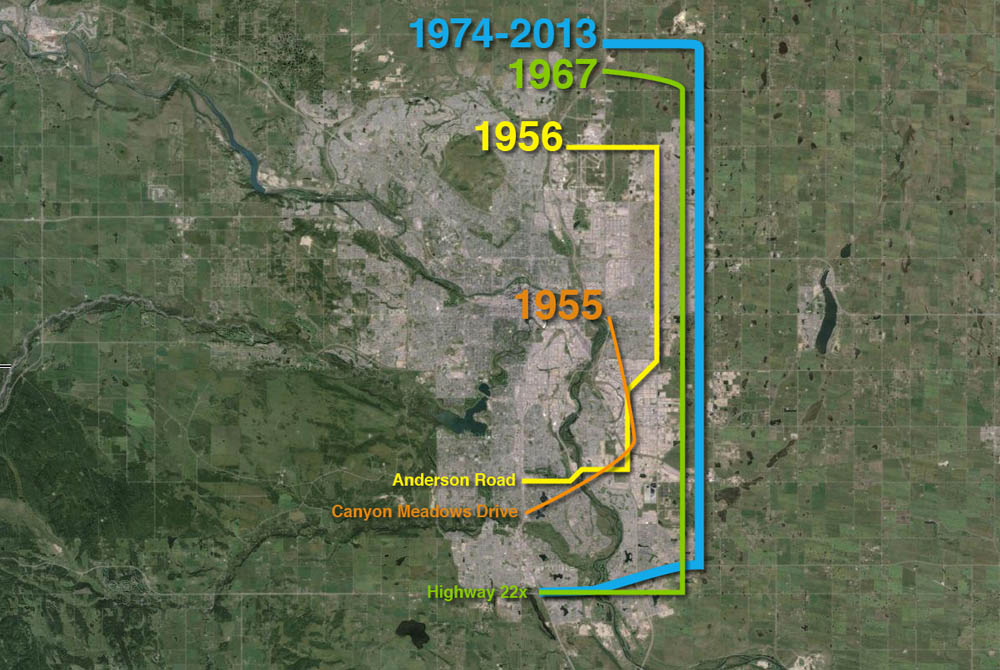

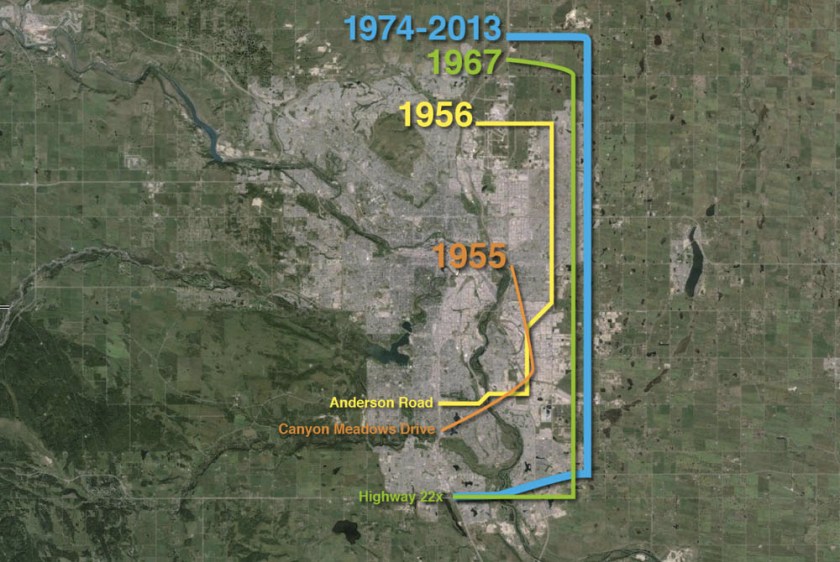

(A progression of bypass proposals for East Calgary is shown above)

Early Bypasses

In the 1950s, when bypass plans were first considered for the Calgary area, the city’s main arterial roads radiated from the core, and the primary bridges over the City’s rivers were largely located downtown. To access the industrial southeast, residents living in the new suburbs of the northwest and southwest would have to drive through or near the increasingly congested core. In order to allow drivers not bound for downtown to bypass central Calgary, and in order to allow long-range travelers to connect between major highways without adding to the congestion of the city, several bypass roads would be proposed that would avoid the city centre. These early bypass plans would include such a facility along the city’s southeastern edge.

Continue reading “A Brief History of the Southeast Calgary Ring Road”

The Ring Road System – Integrated Planning (1974-1976)

While the City of Calgary, and later the Province of Alberta, had addressed the concept of a ring road network around Calgary before, it wasn’t until the 1970s that the idea was formalised into a singular road plan. (Much more on the early history of the road in part one of this four part series)

1974 CALGARY PARKWAY RING (Province of Alberta)

1974 saw the completion of the first comprehensive report on the Calgary Ring Road, known at this time as the Calgary Parkway Ring, which was produced by the firm of Deleuw Cather Consulting Engineers and Planners, on behalf of the Provincial government. This report not only laid out the route and general design of the road, but it also explored the need for the road itself, and the concept of the road as part of a larger system, integrated with other amenities such as public transportation and parks. Continue reading “The Ring Road System – Integrated Planning (1974-1976)”

The Ring Road System – Initial Outlines (1956 to 1970)

In this series of four articles, I want to look at the history of the entire Calgary ring road system, not just the southwest portion. Though the Calgary Ring Road System we know today (Also currently known as Stoney Trail or Alberta Highway 201) has been largely constructed only in the last decade or so, its origins can be traced back to the 1950s and 1960s.

Click here for my summary of the earliest origins of the SW Ring Road (1953-1963).Ring road plans from 1953-1957 originated the concept of a regional bypass road network, and in 1959 portions of that plan were incorporated and approved in Calgary’s first ever transportation plan.

The concept of bypassing the Trans-Canada Highway traffic off of 16th avenue N and onto a more northerly road had been discussed essentially as soon as the Trans-Canada Highway was first routed through the City, and on September 19 1963, Alberta Highways Minister Gordon Taylor announced to a group of North Hill business owners that the Alberta government intended to build a northwest bypass west of Bowness. This section, the northwest bypass, would eventually become the precursor to the first section of the Calgary ring road to be built. However, these outlines were generally smaller piecemeal solutions to local transportation needs, and the planning had not yet reached the point of being a comprehensive design for a regional highway. That work would begin in the late 1960s, and progress in earnest in the 1970s.

Continue reading “The Ring Road System – Initial Outlines (1956 to 1970)”
